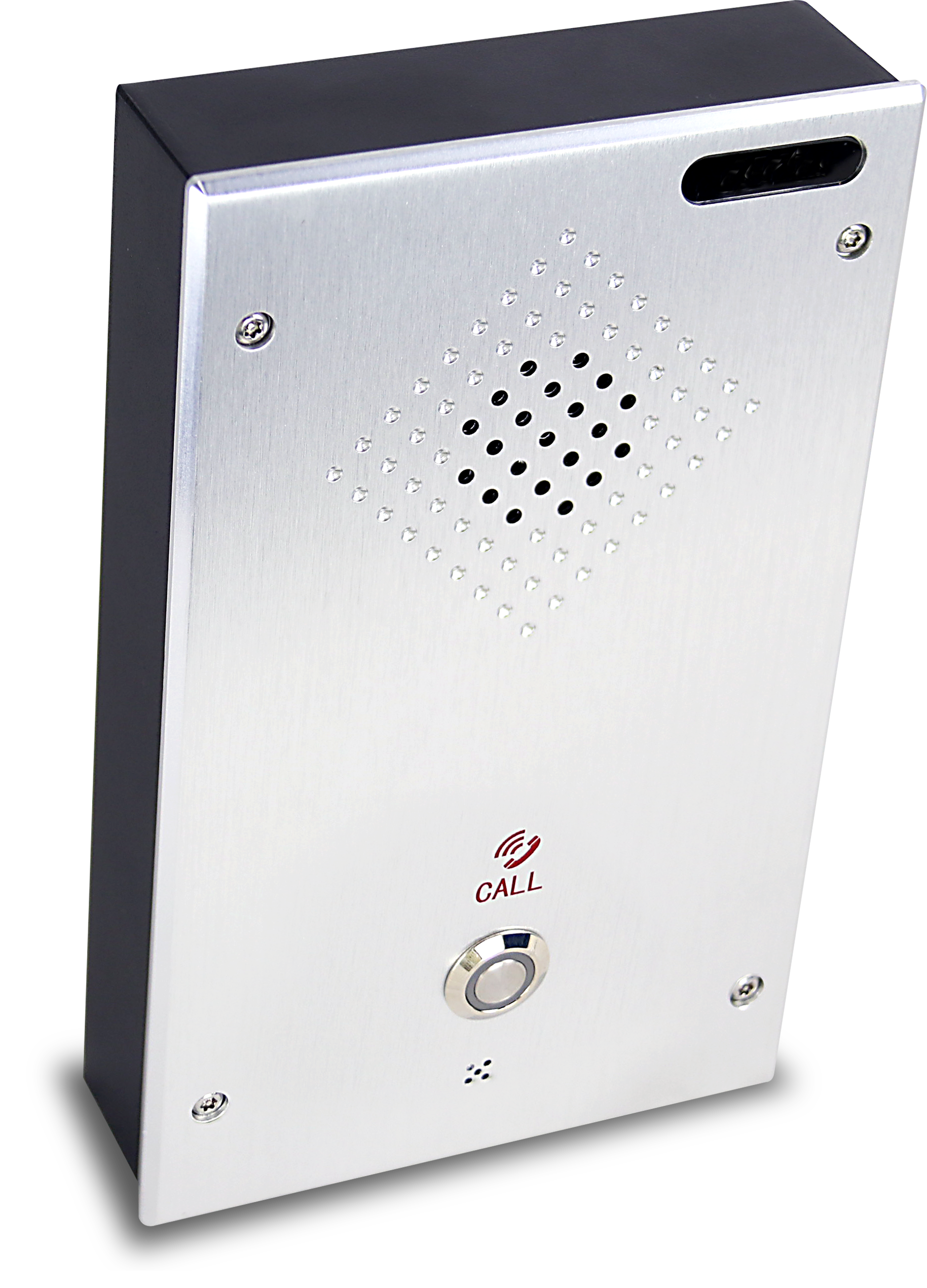

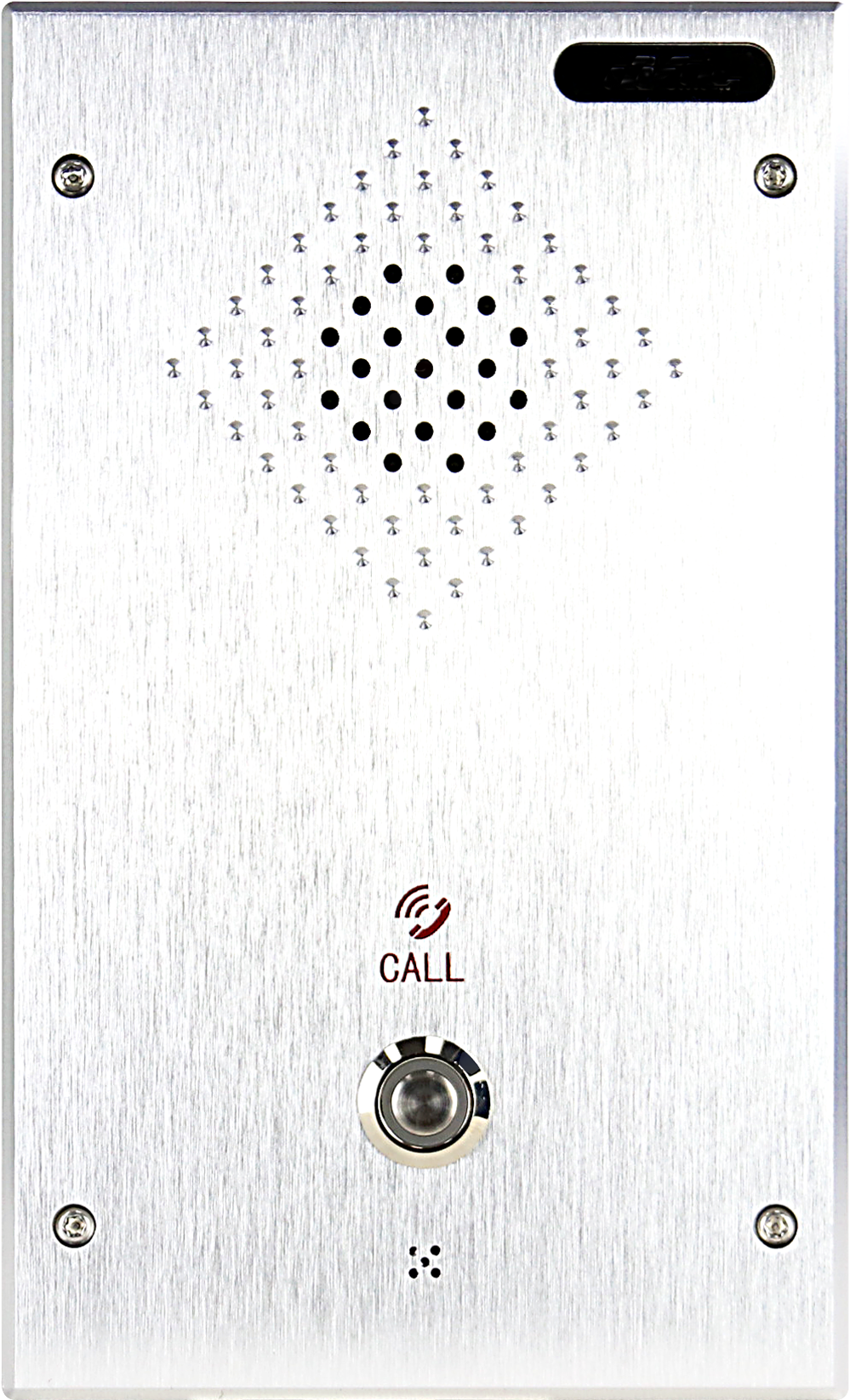

SIP Intercom BI10

Name: SIP Intercom BI10
Brand: BLUELINKAGE, PA Systems, IP PA Systems, SIP Speakers, Amplifiers
Rating: 5 (1 reviews)

BI10 is a SIP intercom designed for secure and realtime two-way communications over IP network with advanced echo cancellation, with audio intercom, broadcasting, access control and security functions. Built with robust hardware complaint with IP65 and IK10, it is suitable for both indoor and outdoor use, ideal for applications of schools, offices, warehouses, retail stores, banks, national parks and parking lots.

GET A QUOTE

Add to Quote List View Quote List

Full SIP VoIP Integration

Built on the open SIP standard, the SIP intercom BI10 integrates seamlessly with mainstream IP-PBX platforms such as Asterisk, 3CX. It fits easily into existing VoIP and unified communications infrastructures without proprietary dependencies.

Two-Way Communication

Supports clear, hands-free, full-duplex, two-way voice communication for smooth conversations between visitors, staff, and security teams. Ideal for entrances, gates, reception areas, and access control points.

Programmable Buttons & Event Triggers

Configurable call buttons (options of 1, 2 or 3 buttons), the SIP Intercom BI10 enables one-touch dialing to control rooms, SIP phones, or emergency centers. Relay outputs can trigger external devices such as door locks, alarms, or warning lights for enhanced access control and safety response.

More details about a SIP PA system?

Contact our expert

Integration with Security & Broadcast Systems

Compatible with VMS, access control systems, and IP audio platforms IPX2000, the intercom functions as part of a unified security ecosystem—linking voice communication, video surveillance, and emergency audio into a single workflow.
The IP intercom BI10 can also work in conjunction with speakers to enable emergency broadcasting. In critical situations, calls or triggers from the intercom can instantly activate loudspeaker announcements across predefined zones, supporting evacuation alerts, security warnings, and real-time emergency instructions.

PoE-Powered, Single-Cable Deployment

With IEEE 802.3af PoE support, the SIP intercom BI10 requires only one Ethernet cable for power and network connectivity. This simplifies installation, reduces wiring costs, and allows flexible placement.

Flexible Installation for Scalable Projects

Available in multiple form factors and button configurations, the SIP intercom is suitable for single buildings, multi-site campuses, transportation hubs, and industrial facilities—scaling easily as your system grows.

Rugged, Weather-Resistant Design

Designed for outdoor and industrial environments with IP65 and IK10 standard, the intercom features a durable, weather-resistant enclosure that protects against dust, rain, and harsh conditions—ensuring reliable operation year-round.


SIP	Built-in Amplifier	2-way Communication	HD Voice	PoE	ONVIF

Highlight Features

Two-way communication
HD voice quality with G.722 audio codec, deliver the clear audio experiences
Robust and durable design with IP65, IK10
Various interfaces to connect speakers, amplifier, microphone, access control, alarm, smoke detector, infrared probe, switch etc.
Additional audo out interface to connect with external speakers for noisy environment
Standard SIP support, which can be integrated with IP Audio software or third-party SIP server
Configured, controlled and monitored via web browser
Auto provisioning via IP audio software for easy installation and configuration of bulk deployments
PoE Support: simplify the installation with just one network cable
Standard ONVIF protocol to compatible ONVIF video management system
Dual SIP servers for backup and failover for critical scenarios
Optional 2 or 3 call buttons to call different destinations

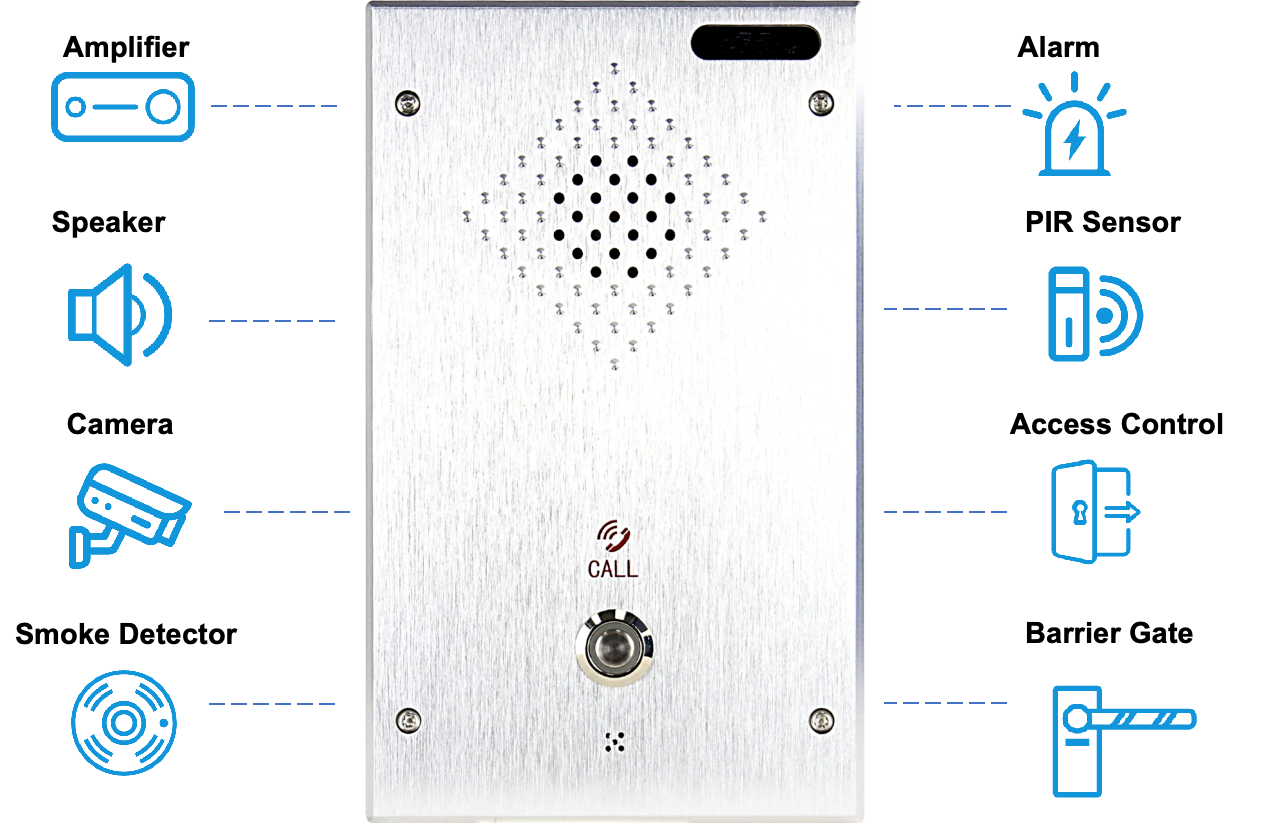

Peripheral Integration

Specifications

Voice Features
Voice Codecs	G.722, PCMA, PCMU, G.729, G.726
VoIP Features	Support SIP protocol for intergration with VoIP/SIP PBX/server Echo cancellation with G.168 Voice activity detection (VAD) Comfort noise generator(CNG) Packet Loss Concealment (PLC) Background Noise Estimation (BNE) Automatic Gain Control (AGC)
DTMF Mode	In-Band, RFC2833 and SIP INFO
Microphone pickup range	5m
Video
Linkage with Third Party IP Camera	Yes
Network
Network Interface	2* RJ45, 10/100Mbps, PoE IEEE802.3at
SIP	SIP v1(RFC2543), v2(RFC3261) , SIP over TLS, SRTP,
SIP Line	2
ONVIF	Yes, integrated with ONVIF VMS/NVR.
Protocols	SIPv2 (RFC3261) SIP over UDP/TCP/TLS IPv4, IPv6 DHCP, Static IP L2TP, OpenVPN, IEEE802.1x VLAN, LLDP TCP, UDP, RTP, SRTP HTTP, HTTPS, FTP, TFTP ARP, RARP, ICMP, NTP, DNS Stun, ICE, NAT
Phone Features	Supports 1/2/3 SIP lines (3 models available) One-touch call Two-way intercom Auto answer Multicast Dialing rules Built-in 10 ringback tones (customizable) Blocklist CDRs
Management
Configuration	Web Configuration Firmware Upgrade via HTTP Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/PnP DHCP OPTION 66 TR069 NTP Network packet capture tool System logs Configuration Restore/Backup
Physical
Power input	DC 12V/2A or 802.3af PoE (Class 3)

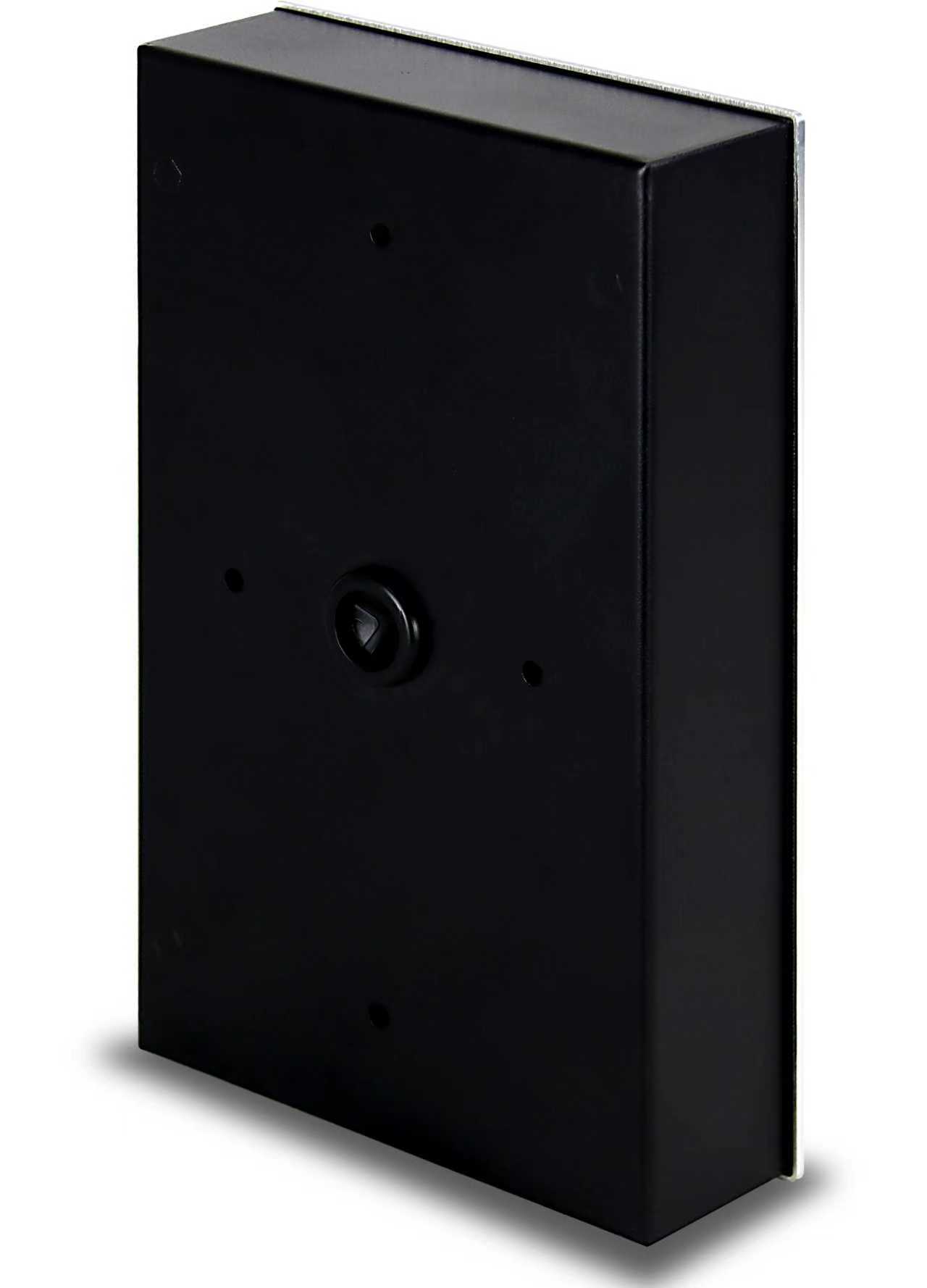

Material	Aluminum front case with metal back cover
Color	Silver
Weight	0.9kg
Dimension	190mm x 115mm x 41mm
Installation	Wall Mounting

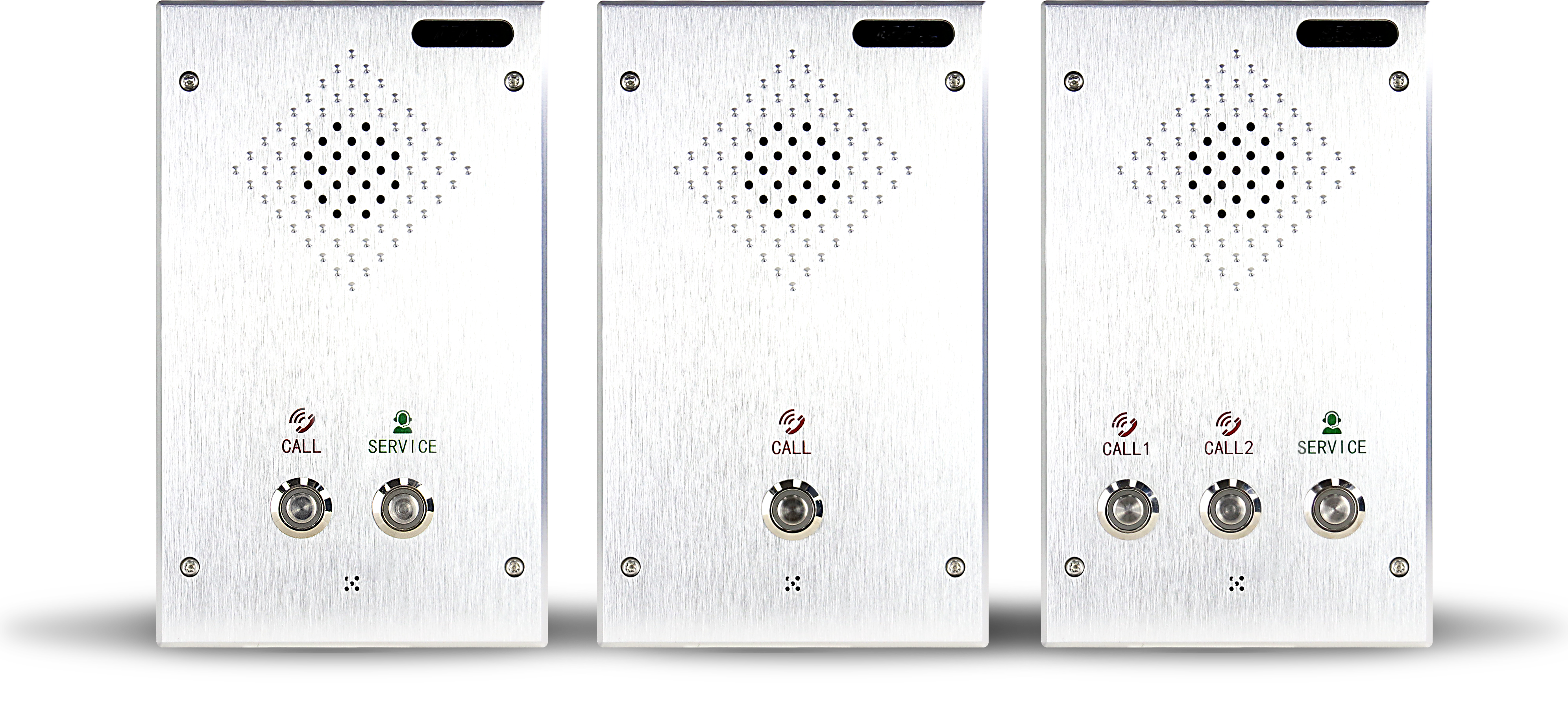

Call Button	Default 1, (optional 2 or 3)
Proof Level	IP65, IK10
Interface	1 * Wan, 10/100M, Supoort 802.3af PoE (Class 3) 1 * Lan, 10/100M 1 * Speaker 1 * MIC 1/2/3 call buttons (3 models available) 1 * IP announcement button 1 * built-in tamper detection 1 * DC Power Supply input, 12V/2A
Environmental
Installation environment	Indoor
Operating temperature	-10℃～50℃
Storage temperature	-20℃～60℃
Humidity	10% ~ 90% RH Non-condensing

More details about SIP intercom?

Frequently Asked Questions

Bluelinkage SIP Intercoms

What is a SIP intercom?

A SIP intercom is a network-based communication device that allows two-way voice calls and announcements over an IP network using standard SIP/VoIP protocols.

Where are SIP intercoms commonly used?

Bluelinkage SIP intercoms BI10 are widely used in offices, schools, hospitals, factories, residential buildings, and public facilities for visitor access, security communication, and emergency notifications.

Can SIP intercoms be used for live paging?

Yes. SIP intercoms can be integrated with paging systems or IP audio software like Bluelinkage IPX2000 to make live announcements to individual devices or groups.

Can SIP intercoms work with IP speakers?

Yes. SIP intercoms BI10 can be paired with SIP speakers and PA systems to broadcast messages and alerts across zones or entire buildings.

Are SIP intercoms compatible with IP PBX systems?

Yes. SIP intercoms BI10 work with standard SIP-based IP PBX platforms and can make or receive calls like a regular SIP phone.

Can I control a SIP intercom remotely?

Yes. Through a web interface, administrators can manage, monitor, and make calls to intercoms from any authorized location.

Are SIP intercoms suitable for outdoor installation?

Yes. SIP intercoms BI10 are weatherproof, with rugged housings to withstand rain, dust, and extreme temperatures.

Can video or camera integration be used?

SIP intercoms BI10 support ONVIF or RTSP, allowing two-way video communication and integration with video management systems (VMS).
